rainbow german car audio, car speakers, way component set, EL-MW165E, DL-C6.2
Regular price
$699.00
Sale price
$899.00

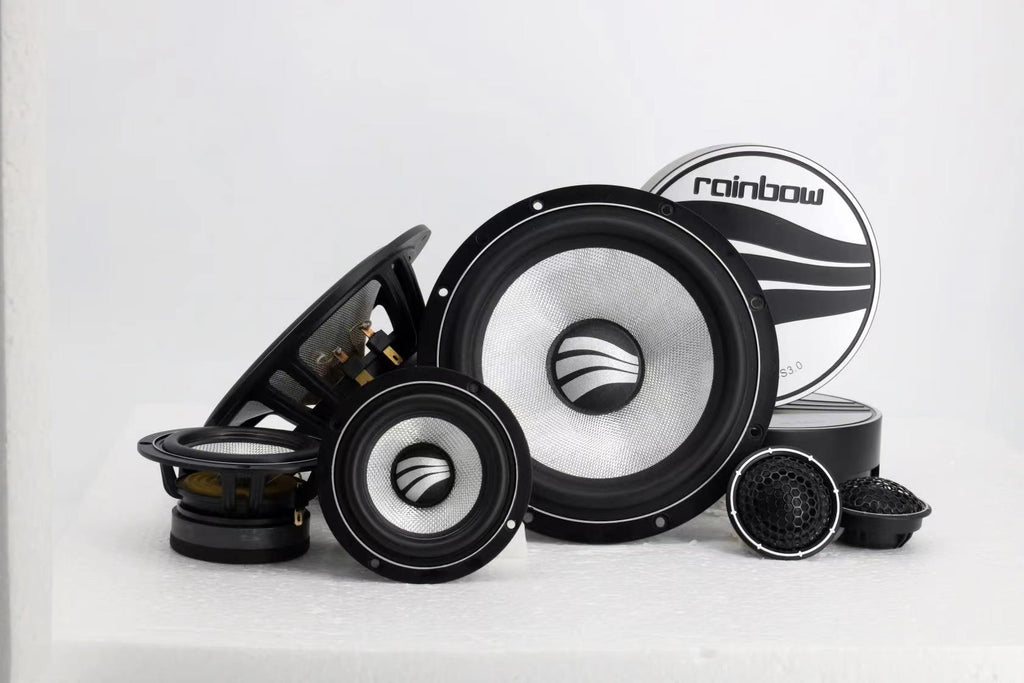

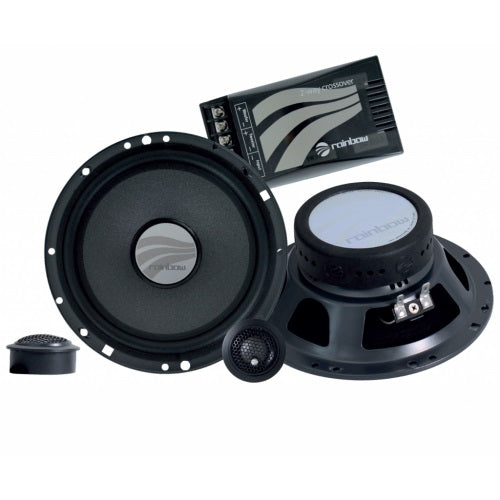

- 2-way 6.5 inch (16,5 cm) Component Set
| Technical Specifcations |
|---|
| Peak power | 150 W |
| Power rating | 80 W |
| Sensitivity | 90 dB/W/m |
| Frequency response | 40Hz – 30kHz |
| Impedance | 4 Ohm |
| Slope | 2 x 12 dB/Oct. |
Common Features:

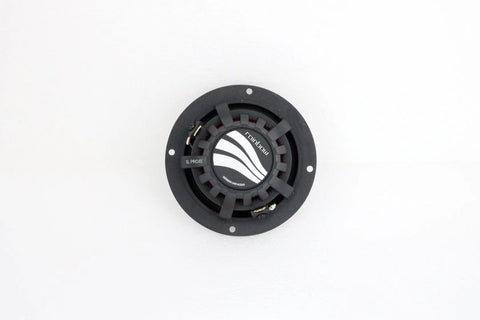

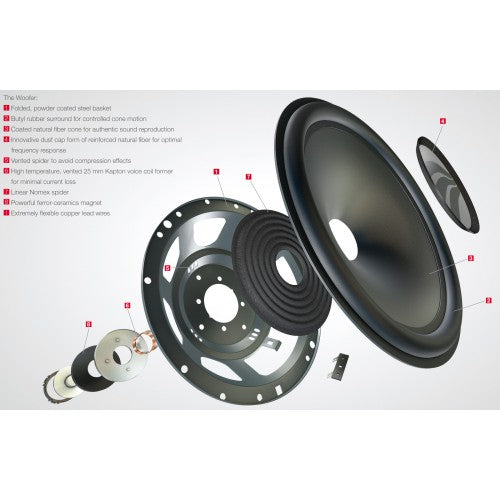

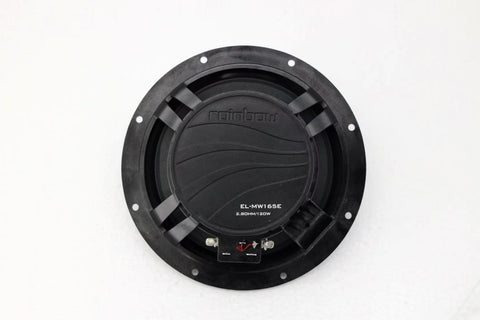

1) The Woofer
- Folded, powder coated steel basket
- Betyl rubber surround for controlled cone motion
- Coated natural fiber cone for authentic sound reproduction
- Innovative dust cao form of reinforced natural fiber for optimal frequency response
- Vented spider to avoid compression effects
- High temperature, vented 25mm kapton voice coil former for minimal current loss
- Linear nomex spider
- Powerful ferror-ceramics magnet
- Extremely flexible copper lead wires

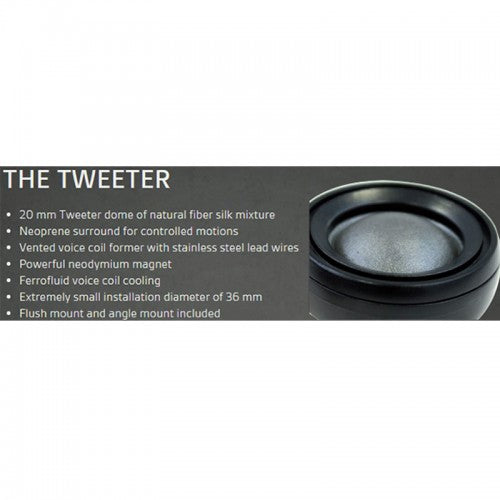

2) The Tweeter
- 20mm tweeter dome of natural fiber silk mixture
- Neoprene surround for controlled motions
- Vented voice coil former with stainless steel lead wires
- Powerful neodymium magnet
- Ferrofluid voice coil cooling
- Extremely small installation diameter of 36mm
- Flush mount and angle mount included

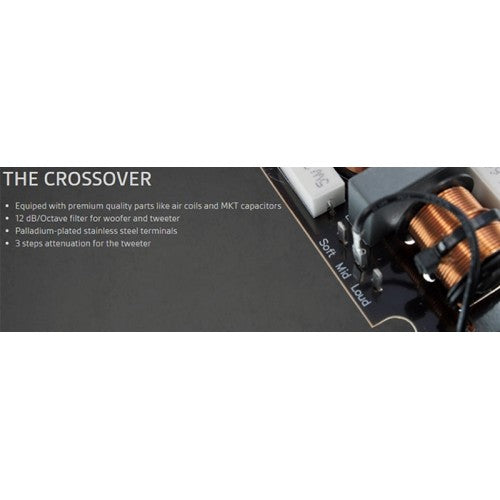

3) The Crossover
- Equiped with premium quality parts like air coils and MKT capacitors
- 12dB/octave filter for woofer and tweeter
- Palladium-plated stainless steel terminals
- 3steps attenuation for the tweeter
|
Part-No. |
231170 |
|
Peak Power |
150 Watt |
|
Power Rating |
100 Watt |
|
Minimum Amplifier Power |
30 Watt |
|
Sensitivity |
90 dB 1W/1m |
|
Frequency Response |
50 - 21k Hz |
|
Impedance |
4 Ohm |
|
Slope |
2 x 12 dB/Okt. |
|
Crossover Frequency |
4.2k Hz |
|
Tweeter Attenuation |
3x |
|
Thermal Protection |
PTC |
|
Woofer |
DL-W6 |
|
Tweeter |
DL-T20 |
Remarks:
- Sold in Pairs
- Please specify your car model & year before purchasing
- Professional installation in our outlet is available with varied charges
- Kindly specify the appointment time if opt for installation in our outlet
- Contact us for other series of Rainbow products.
